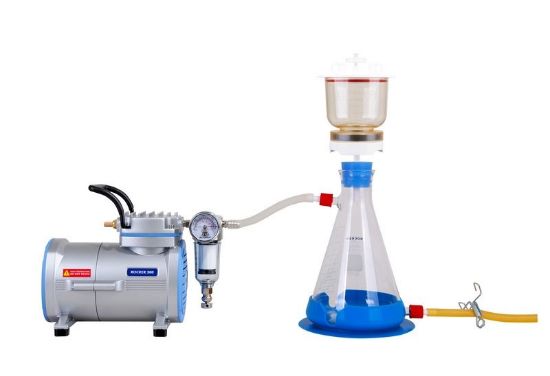

167311-22 Rocker 300 - MF 31, Vacuum Filtration

Youtube Video :

[Rocker 3-Minute Classroom] Total Suspended Solid Test

Features :

◆ No air pollution, maintenance free

Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.

◆ The patented magnetic design

Rocker 300 - MF 31 strong magnetic seal allows one-handed operation, prevents possible twisting and tearing

of the membrane.

International safety certification :

◆ CE certification

◆ CSA certification

(Rocker 300)

Applications :

Air sampling

Suspended solid test

Vacuum Filtration

Complete system includes :

◆ Rocker 300 Oil Free Vacuum Pump

◆ MF 31 Filtration Set

◆ Silicone Tube (1m)

Specification (110V, 60Hz)

◆ Max. flow rate： 23 l/min

◆ Max. vacuum： Ultimate 106mbar (-680mmHg)

◆ Capacity： 300 ml / 1000 ml

◆ Filter diameter： 47 mm / 50 mm

◆ Effective filtration area： 13.1 cm

²

◆ Hose barb： 5/16 inch (8 mm)

Specification (220V, 50Hz)

◆ Max. flow rate： 20 l/min

◆ Max. vacuum： Ultimate 106mbar (-680mmHg)

◆ Capacity： 300 ml / 1000 ml

◆ Filter diameter： 47 mm / 50 mm

◆ Effective filtration area： 13.1 cm

²

◆ Hose barb： 5/16 inch (8 mm)

Material

◆ Filter funnel： PES

◆ Funnel support base： PES

◆ Membrane support： PES

◆ Waste bottle： Borosilicate glass (with drain)

◆ Funnel lid： PP
