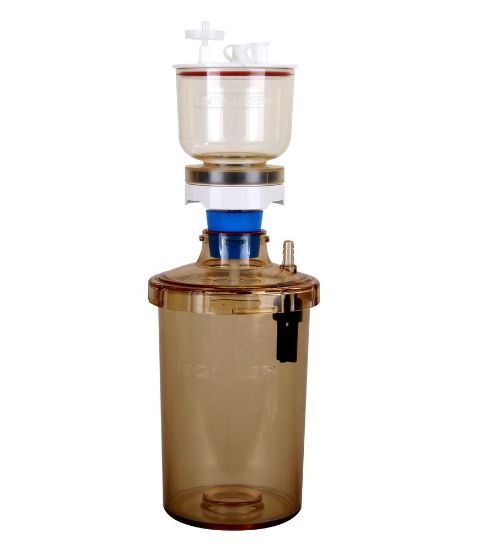

200320-30 MF 30, 47 mm Filtration Apparatus

Features :

◆ MF 30 strong magnetic seal allows one-handed operation

◆ Excellent smash, high temperature resistance and autoclavable.

◆ Funnel graduated in 50ml, receiver in 100ml increments for easy measurement.

◆ Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

◆ Funnel graduated in 50ml, receiver in 100ml increments for easy measurement.

Complete Set Include :

◆ 300 ml PES Magnetic filter holder

◆ 1200 ml PC waste bottle with cover

◆ Overflow protection

◆ Silicon stopper (No.16)

◆ Cap with suction fitting

Applications :

◆ General filtration

◆ Waste suction

Specification :

◆ Material：

Filter funnel - PES

Funnel support base - PC

Membrane support - PP

Funnel cover - PP (optional for LF 5a)

Cap of lid - Silicone

Syringe filter - PTFE

◆ Specification :

Funnel capacity： 500 ml

Filter diameter： 47mm / 50mm

Effective filtration area ： 12.5 cm²

Syringe filter： 25 mm, 0.2μm

Lid inlet fitting diameter : 7 mm
