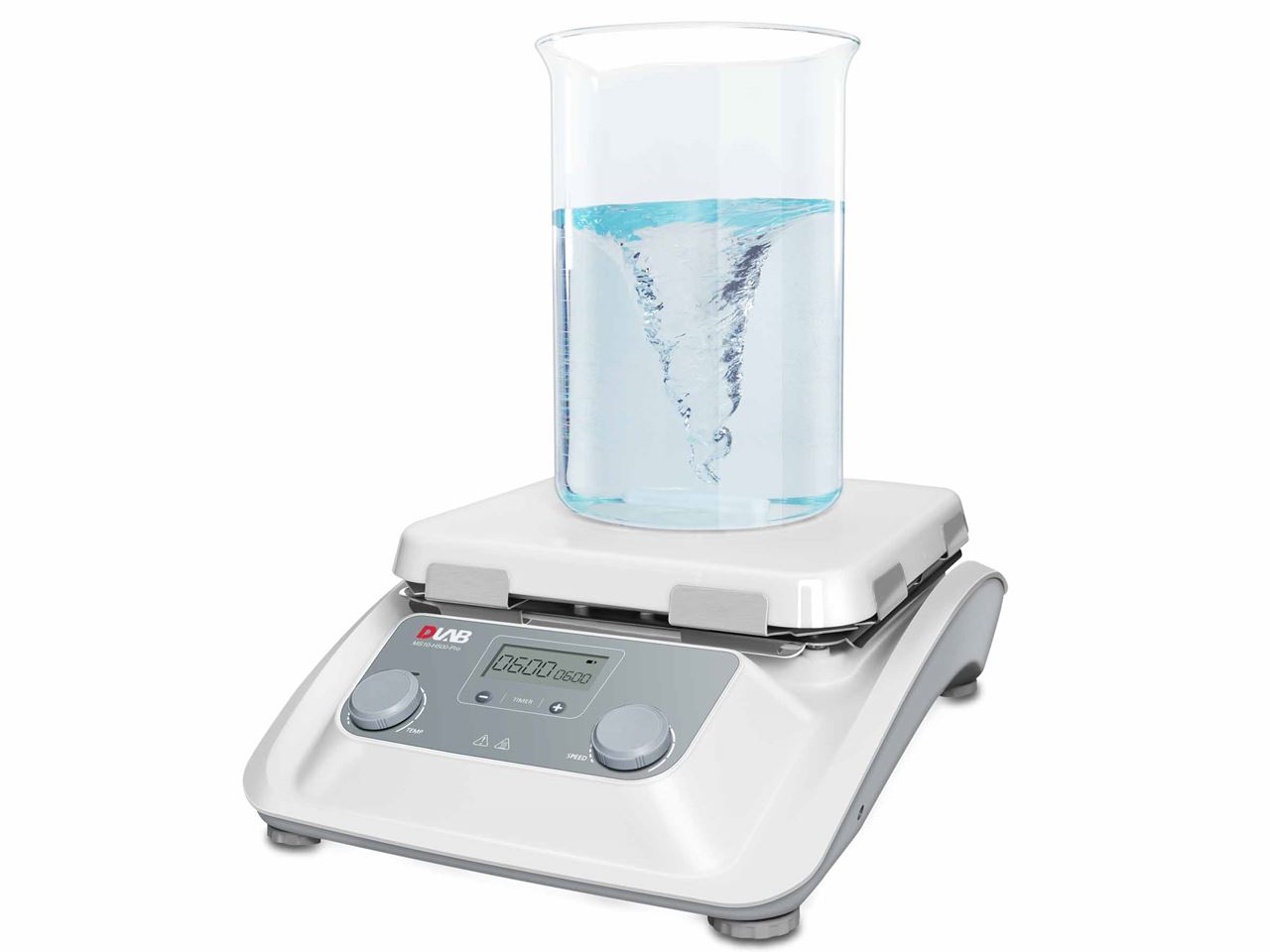

MS10-H500-Pro, 8030132117

LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 500°C
SKU: 8030132117
Manufacturer: Dragon Lab



MS10-H500-Pro: LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass-ceramic hotplate, heating temperature up to 500°C

Hotplate Magnetic Stirrer - 500°C

LCD Digital Magnetic Hotplate Stirrer

• Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring

• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer

• LCD display for precise monitoring of speed and temperature . • External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C

• Digital speed control of 100 ~ 1500rpm

• Max. heating plate temperature 500℃

• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

• Data connector : The SD card also records the instrument's running data in real time.

• Timing function: the running time of the instrument can be set.

Work plate Dimension [W x D]254x254mm(10inch)
Work plate materialGlass ceramic
Motor typeBrushless DC motor
Stirring positions1
Max. stirring quantity, [H2O]30L
Max. magnetic bar[length]80mm
Speed range100-1500rpm resolution±1rpm
Speed,time, Temperature displayLCD
Timer function1min-99h59min
Heating temperature rangeRoom Temp.-500℃,  increment1℃
Temperature control accuracy±1℃ (<100℃)±1%(>100℃)
Overheating protection540℃
Temperature display accuracy±0.1℃
External temperature sensorPT1000(±0.2℃)
"Hot" warning        50℃
Data connectorSD card
Protection classIP21
Power1400W
Heating output1350W
Voltage Frequency100-120/200-240V 50/60Hz
Dimension [WxDxH]328x424x138mm
Weight7.18kg
Permissible ambient temperature and humidity5-40℃,80%RH

Cat. No.P/NDescriptionsPower supply
8030132117MS10-H500-ProLCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 500°CUSA plug,100V-120V/50Hz/60Hz
Cn plug,200V-240V/50Hz/60Hz
Euro plug,200V-240V/50Hz/60Hz
UK plug,200V-240V/50Hz/60Hz
8030132117MS10-H500-Pro
package
Include:LCD Digital 10’’ Square Hotplate Magnetic Stirrer,glass ceramic hotplate,heating temperature up to 500°C(8030132117)+ PT1000A (18900016) + support clamp (18900017)



Attribute nameAttribute value
TypeMagnetic Hotplate Stirrer
ModelMS10-H500-PRO
